تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: CHNSpec
إصدار الشهادات: CE

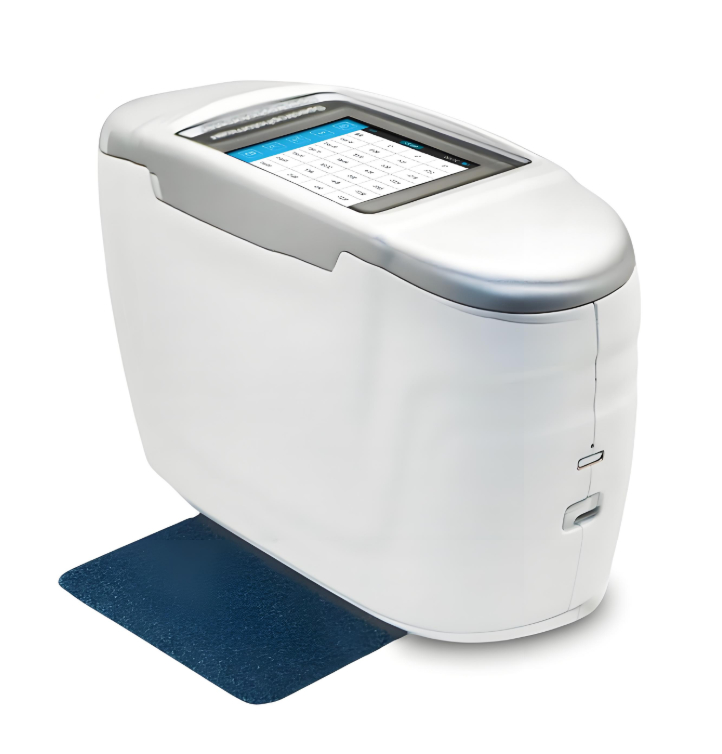

رقم الموديل: سلسلة MC12
شروط الدفع والشحن
الحد الأدنى لكمية: 1
الأسعار: قابل للتفاوض
تفاصيل التغليف: صندوق الكرتون
وقت التسليم: 5-7 أيام
شروط الدفع: ر/ر
القدرة على العرض: 1000 شهريا
نموذج: |
MC12 |
النطاق الطيفي: |
400 نانومتر-700 نانومتر |
زوايا المراقب: |
2 درجة / 10 درجة |
تخزين البيانات: |
10000 سجل |
نموذج: |
MC12 |
النطاق الطيفي: |
400 نانومتر-700 نانومتر |
زوايا المراقب: |
2 درجة / 10 درجة |
تخزين البيانات: |
10000 سجل |
I. Product Features
1. Full-scene coverage: Up to 12 angles for accurate capture of automotive, plastic, cosmetics, and other effect finishes
2. Four effect-parameter measurement system, ending the era of purely subjective evaluation “subjective evaluation” in effect finish quality control
3. 10-year / 5-million measurements light source revolution, setting a benchmark for industrial-grade reliability
4. Outstanding 0.18 inter-instrument agreement, the “unified data language” for globalized production
II. Measurement principle
III. Technical Parameters
|
Model
|
MC03
|
MC06 |
MC12
|
| Measurement Geometry |
3 angles (3 light sources, 1 receiver) |
6 angles (6 light sources, 1 receiver) |
12 angles (7 light sources, 2 receivers) |
|
Color
Measurement
Angles
|
45° receiver:
45as15°,45as45°,45as110°
|
45° receiver:45as-15°,45as15°,45as25°, 45as45,45as75°,45as110 |
45° receiver:
45as-15°,45as15°,45
as25°,45as45°,
45as75°,45as110
15°receiver:
15as-45°,15as-15°,15as15°,
15as-30°,15as45°,15as80°
|
|
Illumination Source
|
Full-spectrum LED with blue-light enhancement
|
||
|
Light Source
Lifetime
|
10 years / 5 million measurements
|
||
|
Detector
|
256-pixel dual-array CMOS image sensor
|
||
|
Spectral Range
|
400nm-700nm
|
||
|
Measurement
Aperture
|
Illumination Φ24mm / Sampling 9×12mm
|
||
|
Additional Indices
|
Flop Index, Color Travel Index
|
||
|
Measurement
Time*
|
About 2.5s
|
About 4.5s
|
About 5s
|
|
Battery Life
|
Up to 5000 measurements
|
||
|
Color Repeatability
|
0.02 ΔE*ab
(after warm-up calibration, 30 white tile measurements at 5s intervals, standard deviation)
|
||
|
Color
Reproducibility
|
ΔE* < 0.10
(average on gray BCRA tiles); ΔE* < 0.25 (average on colored BCRA tiles)
|
||
|
Inter-instrument
Agreement
|
0.2 ΔE*00 (BCRA II, 12 tiles)
|
0.18 ΔE*00
(BCRA II, 12 tiles)
|
|
|
Effect Parameters
|
/ | Sparkle, Color Sparkle, Graininess | |
|
Effect
Measurement
|
/ | 6-angle sparkle and graininess:15as-45°, 15as-30°, 15as-15°, 15as15°, 15as45°, 15as80°; 15d diffuse graininess | |
|
Effect Repeatability
|
/ |
Sparkle short-term repeatability: 0.12% (standard deviation of 10 measurements) (After instrument warm-up calibration, average of 10 measurements on color tile at 10s intervals) Graininess short-term repeatability: 0.09% (standard deviation of 10 measurements) (After instrument warm-up calibration, average of 10 measurements on color tile at 10s intervals) |
|
|
Effect
Reproducibility
|
/ | Sparkle reproducibility: 1.9% (standard deviation of 10 measurements) (Average value from measurements on 12 BCRA Series II color tiles) Graininess reproducibility: 1.4% (standard deviation of 10 measurements) (Average value from measurements on 12 BCRA Series II color tiles) |
|
|
Positioning
|
Color camera preview
|
||
|
Display
|
3.5-inch TFT true-color capacitive touchscreen
|
||
|
Data Storage
|
10,000 records
|
||
|
Compliance
Standards
|
ASTM D 2244,E 308,E 1164,E 2194,E2539,DIN 5033,5036,6174,6175-1,
6175-2;IS07724,11664-4 ,SAE J 1545
|
||
|
Special Features
|
Provides precise and consistent color measurement for metallic, pearlescent, and other complex
special-effect colors
|
||
|
Spectral Dispersion
|
Concave grating
|
||
|
Wavelength
Interval
|
10nm
|
||
|
Measurement
Range
|
0~600%
|
||
|
Half Bandwidth
|
10nm
|
||
|
Color Spaces
|
CIE LAB,XYZ,Yxy,LCh,βxy.DIN Lab99,RGB,hunter Lab
|
||
|
Color Difference
Formulas
|
ΔEab, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, DIN ΔE99, ΔE DIN6175, multiple automotive OEM
formulas; Metamerism, ΔEab(Hunter), ΔEch, ΔE*uv
|
||
|
Observer Angles
|
2°/10°
|
||
|
Observation Light
Sources
|
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8
|
||
|
Display Functions
|
Spectral graph/data, sample color values, color difference values/graph, pass/fail results, color
simulation, color bias, effect values, effect difference values
|
||
|
Trigger Modes
|
Pressure sensor, button trigger, software trigger
|
||
|
Measurement
Modes
|
Single, average, continuous measurement
|
||
|
Dimensions
|
194 × 73 × 118mm
|
||
|
Interfaces
|
USB, Bluetooth
|
||
|
Languages
|
Simplified Chinese, Traditional Chinese, English
|
||
|
Operating
Conditions
|
10°C–50°C, ≤85% RH, non-condensing
|
||
|
Storage Conditions
|
-20°C–50°C, ≤85% RH, non-condensing |
||
|
Calibration
|
Built-in white reference, external white tile, black cavity, external color tile
|
||
|
Calibration Interval
|
4h, 8h, 24h, or at startup |
||
|
Standard
Accessories
|
Power adapter, data cable, user manual, quality management software (download), calibration
kit, protective cap, wrist strap
|
||
|
Optional
Accessories
|
Mini printer
|
||
*Color measurement time
**Technical specifications are for reference only and are subject to the actual product sold
